Octagonal Ring SBX

Tolerance: (mm)
OD + 0.5，- 0 E + 0.8，- 0
Oral disintegrating tablets
C+0.15-0 g 23 0 15 °°±
0.5＋0.2
HA+0.2, -0 R2 maximum value
aa + 0.2，- 0 D + 0，- 0.8
Note 1:
The radius should be between 8% and 12% of the gasket height, h
Note 2:

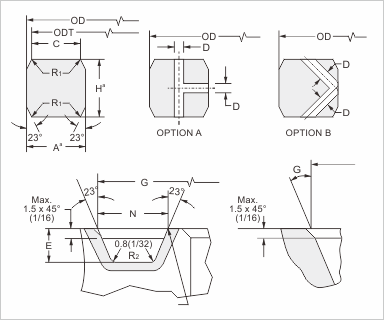

When preventing pressure lock in the two pressure channel holes of the SBX ring section, the connection is made underwater. Provide two options for drilling pressure channel holes. A tolerance of 0.2 mm (0008) in width and height is allowed, as long as the width or height of any ring does not vary by more than 0.1 mm (0004) along the entire circumference.
