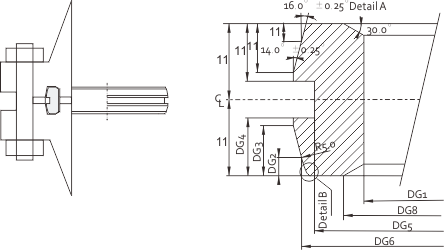

表九密封环及其b.2-dimensions
|
DN |
NPS |
IX size |
Dg1 mm |
DG2 mm |
DG3 mm |
DG4 mm |
DG5 mm |
DG6 mm |
DG7 mm |
DG8 mm |
HG1 mm |
HG2 mm |
HG3 mm |
HG4 mm |
HG5 mm |
RG1 mm |
Weight kg |
|
15 |
1／2 |
IX15 |
22.2 |
27.91 |
28.46 |
28.66 |
27.47 |
29.14 |
30.19 |
24.7 |
0.35 |
1.20 |
3.30 |
3.8 |
10.00 |
0.5 |
0.02 |
|
20 |
3／4 |
IX20 |
27.2 |
32.93 |
33.47 |
33.67 |
32.48 |
34.16 |
35.20 |
29.7 |
0.35 |
1.20 |
3.30 |
3.8 |
10.00 |
0.5 |
0.03 |
|
25 |
1 |
IX25 |
34.2 |
39.95 |
40.49 |
40.69 |
39.50 |
41.18 |
42.22 |
36.7 |
0.35 |
1.20 |
3.30 |
3.8 |
10.00 |
0.5 |
0.03 |
|
40 |
1 1／2 |
IX40 |
49.3 |
55.84 |
56.38 |
56.58 |
55.34 |
57.11 |
58.21 |
51.9 |
0.35 |
1.27 |
3.48 |
4.0 |
10.56 |
0.5 |
0.05 |
|
50 |
2 |
IX50 |
61.3 |
68.43 |
69.08 |
69.32 |
67.92 |
69.89 |
71.13 |
64.4 |
0.42 |
1.41 |
3.89 |
4.5 |
11.78 |
0.6 |
0.08 |
|
65 |
2 1／2 |
IX65 |
74.4 |
82.14 |
82.79 |
83.03 |
81.52 |
83.69 |
85.05 |
77.8 |
0.42 |
1.56 |
4.28 |
4.9 |
12.98 |
0.6 |
0.12 |
|
80 |
3 |
IX80 |
89.5 |
97.74 |
98.49 |
98.77 |
97.09 |
99.47 |
100.96 |
93.3 |
0.49 |
1.71 |
4.70 |
5.4 |
14.24 |
0.7 |
0.17 |
|
100 |
4 |
IX100 |
115.7 |
125.17 |
126.04 |
126.36 |
124.44 |
127.15 |
128.85 |
120.1 |
0.56 |
1.94 |
5.34 |
6.2 |
16.19 |
0.8 |
0.28 |
|
125 |
5 |
IX125 |
142.0 |
152.66 |
153.64 |
154.00 |
151.87 |
154.87 |
156.75 |
146.7 |
0.63 |
2.15 |
5.92 |
6.8 |
17.94 |
0.9 |
0.42 |
|
150 |
6 |
IX150 |
170.2 |
182.17 |
183.25 |
183.66 |
181.32 |
184.61 |
186.66 |
175.4 |
0.70 |
2.36 |
6.48 |
7.5 |
19.64 |
1.0 |
0.62 |
|
200 |
8 |
IX200 |
220.5 |
233.46 |
234.66 |
235.10 |
232.45 |
236.19 |
238.54 |
226.5 |
0.77 |
2.68 |
7.38 |
8.5 |
22.36 |
1.1 |
0.99 |
|
250 |
10 |
IX250 |
274.9 |
292.64 |
294.05 |
294.57 |
291.57 |
295.78 |
298.42 |
281.7 |
0.91 |
3.02 |
8.31 |
9.6 |
25.20 |
1.3 |
1.85 |
|
300 |
12 |
IX300 |
325.0 |
341.13 |
342.65 |
343.21 |
339.97 |
344.52 |
347.36 |
332.5 |
0.98 |
3.26 |
8.96 |
10.4 |
27.15 |
1.4 |
2.18 |
|
350 |
14 |
IX350 |
357.1 |
373.87 |
375.38 |
375.94 |
372.58 |
377.34 |
380.32 |
365.0 |
0.98 |
3.42 |
9.39 |
11.0 |
28.46 |
1.4 |
2.60 |
|
400 |
16 |
IX400 |
409.3 |
427.36 |
428.98 |
429.58 |
425.98 |
431.08 |
434.27 |
417.9 |
1.05 |
3.66 |
10.05 |
11.9 |
30.47 |
1.5 |
3.43 |
|
450 |
18 |
IX450 |
459.4 |
478.90 |
480.63 |
481.27 |
477.45 |
482.85 |
486.23 |
468.6 |
1.12 |
3.87 |
10.65 |
12.7 |
32.28 |
1.6 |
4.38 |
|
500 |
20 |
